1	"WWW Forensics" WWW Forensics CERT 2002 Amit Klein August 7, 2002
2	Presentation Agenda The Facts Reviewed: The Real World….. Preparing for the Worst So you’re under Attack Analyzing the Attack: The Micro and Macro view Demonstration of Automated logging and reporting Conclusion (and recommended reading)
3	The Facts Reviewed…. Code Red infected 359,000 servers in less than 14 hours – at the peak, it infected more than 2,000 new hosts/minute – estimated cost? $2.6B (Computer Economics) Within 24 hours of NIMDA hitting, 50% of the infected hosts went offline (CNet) 1 vulnerability exists in every 1500 lines of code (IBM’s Watson Research Lab) ; Windows XP has 45M lines of code; MS code lines double every 866 days….(Gartner; N.Myrhvold) $18 billion in sales is expected to be lost due to concerns about online security in 2002 (FTC) 90% of large companies experienced some sort of security breach in 2001, including virus infections, Web site vandalism, credit card fraud and theft of company secrets (CSI/FBI)
4	Cyber Crime on the Rise

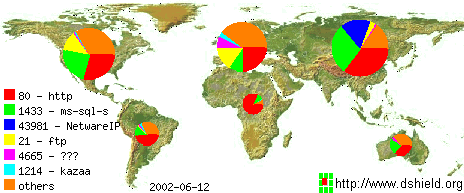

5	Most Attacked: Port 80
6
7	What is Web Application Forensics
8	Why Forensics? Damage control Countermeasures Prevention
9	Forensics Relies On…. Deductive reasoning and analysis Putting the pieces of the puzzle together The knowledge to identify attack patterns Identifying the separate pieces
10	Web Application Forensics Relies On… Focus on the applications: HTTP (less concerned about other protocols) Knowledge about the site and applications Ability to recognize abnormal behavior Some idea of attacker behavior Attackers will tailor attacks to exploit specific application vulnerabilities There are various attack sources (with different characteristics) True hackers Scanners (script kiddies) Worms
11	"Preparing for the Worst" Preparing for the Worst
12	The Crime Scene Where it all begins: the logs (where the evidence lies…) Logs are imperfect Do not store 100% of the information Default configurations are often incomplete Special characters may not be displayed correctly Turn on all possible log entries Date/time Client IP address Query All HTTP Headers Etc…
13	Logs, Logs, Logs Different data sources deliver different critical information: Firewall Proxy server Load balancer Web server Application server Application (custom) logs System logs (O/S) IDS Application firewall
14	Apache 1.3.x Logs Default logging: Source host, “user”, first-line, status, byte sent. Missing: remote port, virtual host, HTTP headers, processing time, connection status Maximum logging: LogFormat "%t %h:%{REMOTE_PORT}e -> %A:%p (%v) : %l %u \"%r\" \"%{Content-Type}i\" \"%{Content-Length}i\" \"%{Referer}i\" \"%{User-Agent}i\" \"%{Cookie}i\" %>s %T %b %c“ Still missing: some HTTP headers, reliable source port, POST parameters. Note: source port available only with CGI invocation Consider using ScriptLog logging (will be useful only for CGI errors)

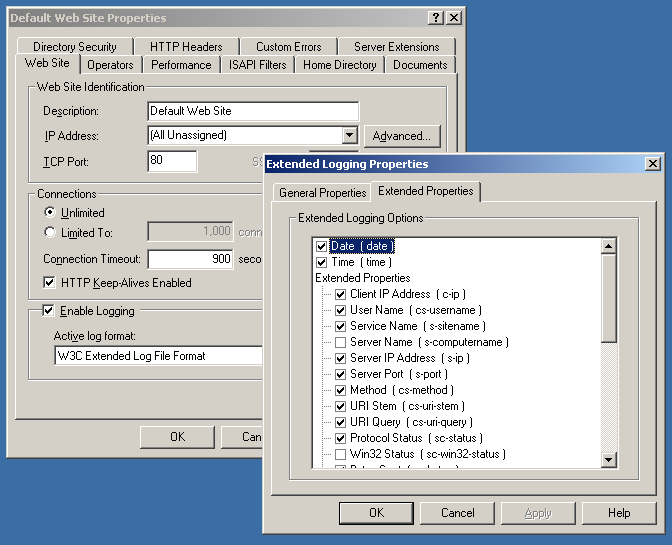

15	IIS/5.0 Logs Default: Source IP, “user”, server IP:port, first-line, status, User-Agent. Missing: virtual host, Cookie, Referer, processing time, bytes sent, bytes received, Win32 status Maximum (W3C format) – No source port (!) No HTTP headers (except User-Agent, Cookie, Referer) POST parameters.
16	IIS/5.0 Logs (contd.)
17	Know Thy System: Application File System Integrity Detect changes in important files, such as configuration files (httpd.conf, log files etc.) Watch for changes in web documents, date/time and MD5 checksums for special files. Requires keeping reference information like dates and checksums Keep important data out of web root Database files, customer files, session files
18	Know Thy System: Application File System Integrity Protecting the logs Make it harder for the hacker to cover their tracks Holding real-time/one-way copy of log Keep log file different, protected server Sanitizing log files Avoid being hacked while logging attacks, such as log spoofing attacks and format string attacks Sanitize user input before log insertion - block attacks trying to erase logs by sending special characters (like the ASCII value of backspaces) Remove other special characters e.g. ‘%’ used to run ‘format string attack’ on logging utility such as syslogs functions
19	Know Thy Enemy “True” Hackers, Script Kiddies, and Internet Worms share the goal of disrupting your site, but their methods are vastly different…… For each tool/technique: – learn to identify the trace it leaves, and as a bonus – check your system... Scanners download freeware/evals, run against your system Hacking tools Try them against your site. Easy? Difficult? Browse your site learn how good traffic looks like in the logs
20	Attack sources

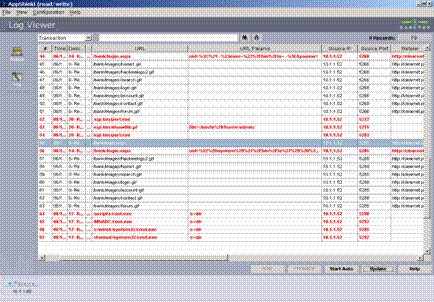

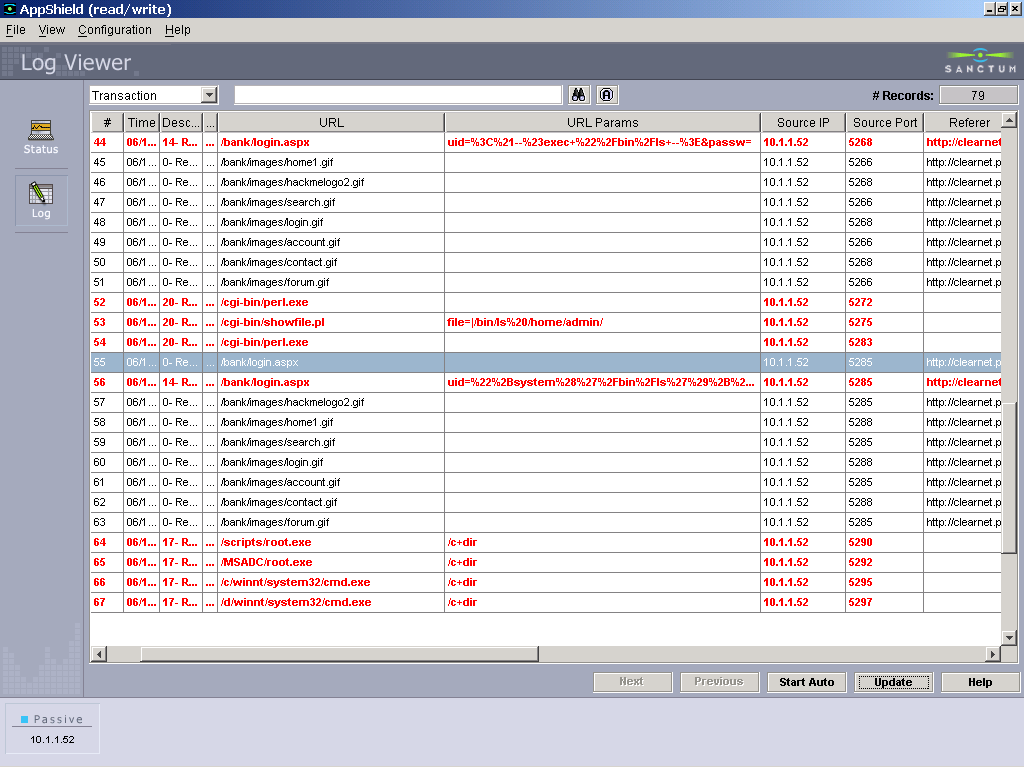

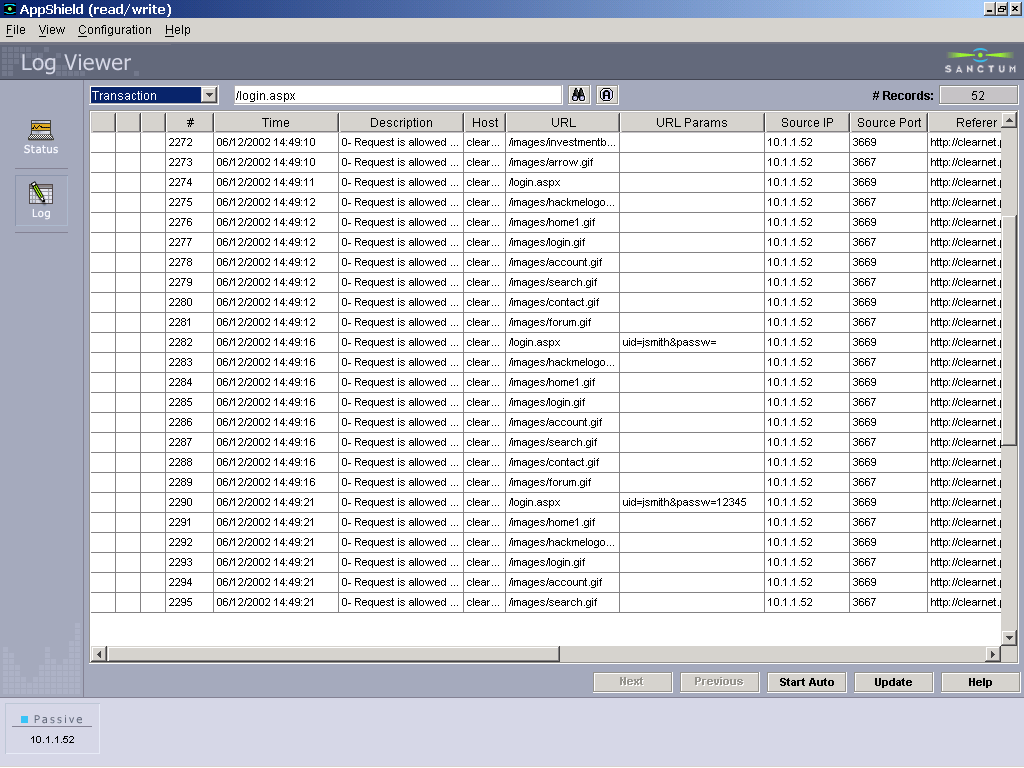

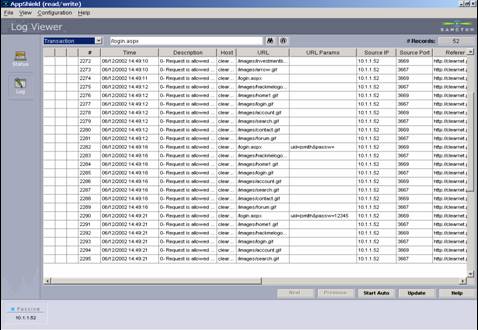

21	Human Hacker – Log Example

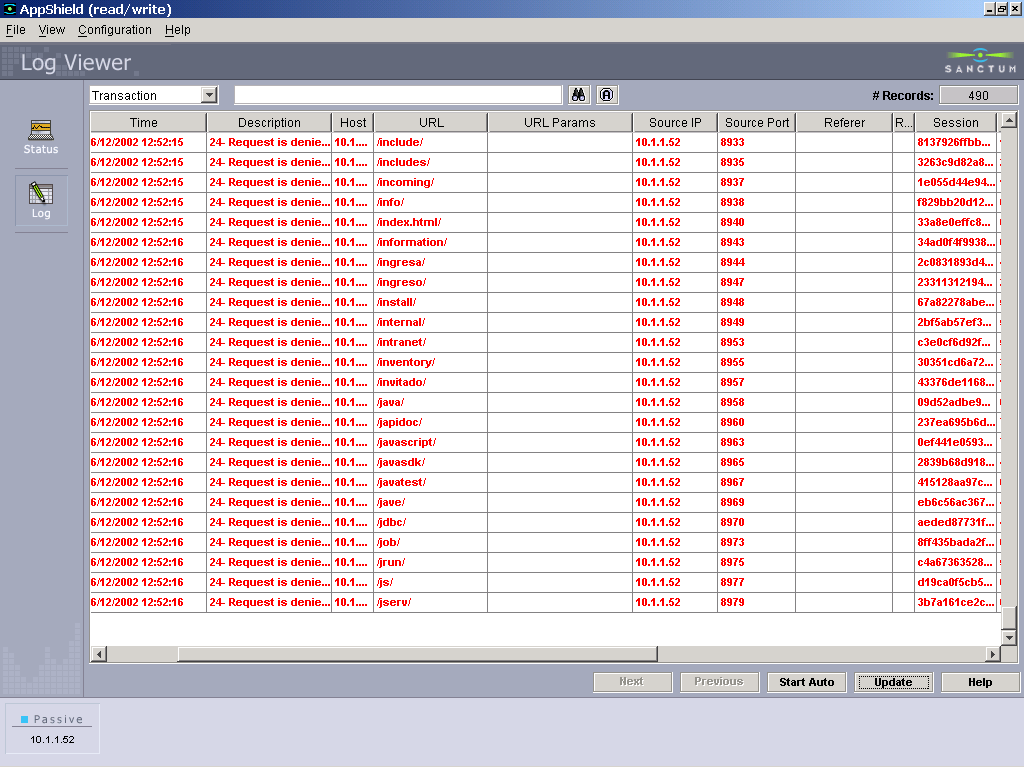

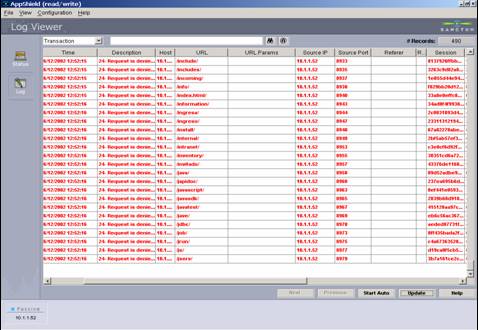

22	Automatic Scanner – Log Example
23	Internet Worm – Log Example
24	Advanced Methods to Determine Who is Attacking The HTTP Referer Format: Referer: http://www.my.site/cgi-bin/login.pl?id=12345 Sent by browser for “normal flow” requests Can be used to identify attacks False positive: Javascript generated links, some (rare) browsers False negative: smart hackers
25	"So You’re Under Attack..." So You’re Under Attack...
26	You’ve Been Attacked – What Should You Do?
27	You’ve Been Attacked – The Response
28	Web Application Forensics - Practice Collect files needed (logs, scripts/servlets), config, system files Wear gloves Divide and conquer – analyze by sessions, IPs Analyze requests (develop and use automatic tools): suspicious characters, HTTP methods, paths, ... Analyze sessions: how does the session look, flow, speed

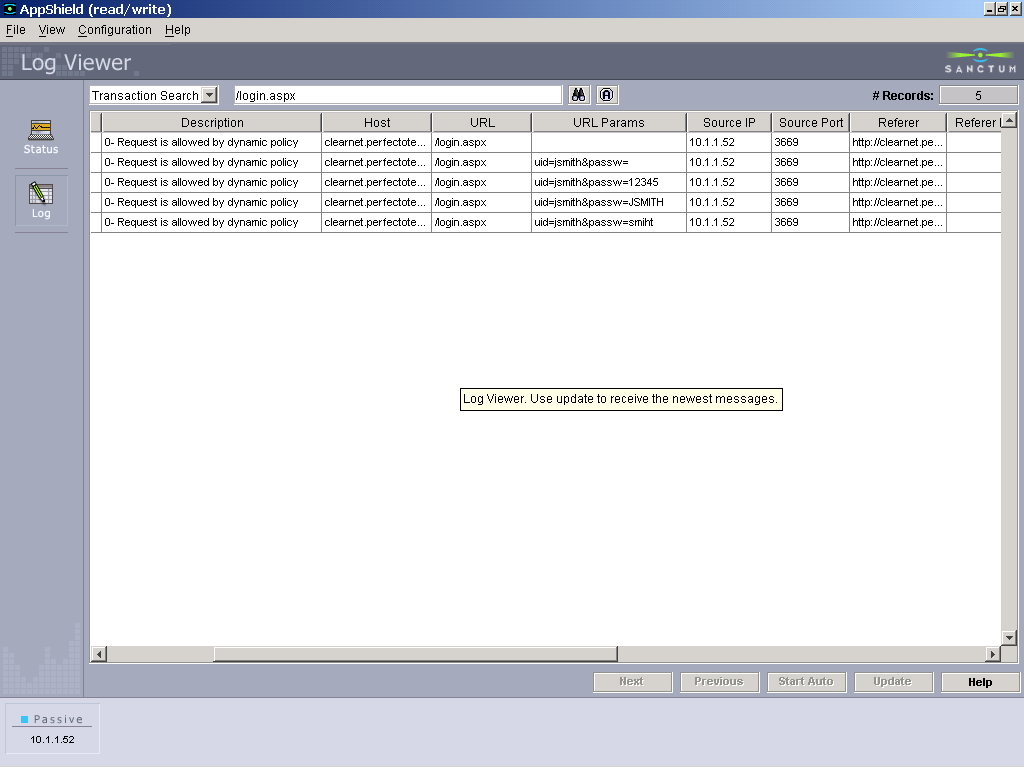

29	Logs - Unfiltered
30	Logs – Filtered (IP/session, TCP, URL)
31	Deductive Reasoning Example: Get initial readout from any available monitoring system and witnesses Check system resources Check network usage Examine the log files Track attackers source IP - see if originated from certain ISP, then… Look for additional attacks in this ISP’s IP range
32	Analyze Attack Sources The Micro - identify single attack transactions what is the nature of the attack, aimed at which component The Macro - identify patterns, groups of attacks, and the origin
33	"The Micro" The Micro Analyzing Single Attacks (requests)
34	HTTP Request Components POST /cgi-bin/login.pl?id=1234 HTTP/1.1 Host: www.my.site Content-Length: 21 user=admin&pass=AdMiN Attacks can take place in one or more of the following components: HTTP headers (+method and protocol designation) path component request parameters
35	Attack Detection – HTTP headers Target of attacks: overflow (DoS) attacks, source disclosure, site manipulation (using non standard methods – WebDAV) Log manifestation: HTTP header attacks: particularly evasive - seldom logged Non-standard methods (not HEAD/GET/POST) – e.g. PUT, DELETE, SEARCH, ... (logged) Non standard header names. Know the standard header names and what values to expect. Look at RFC 2616 (HTTP/1.1). Cookie poisoning – repetitive attempts to feed cookies with invalid session IDs overlong values/non-ASCII characters. Note: usually characters are not URL-encoded

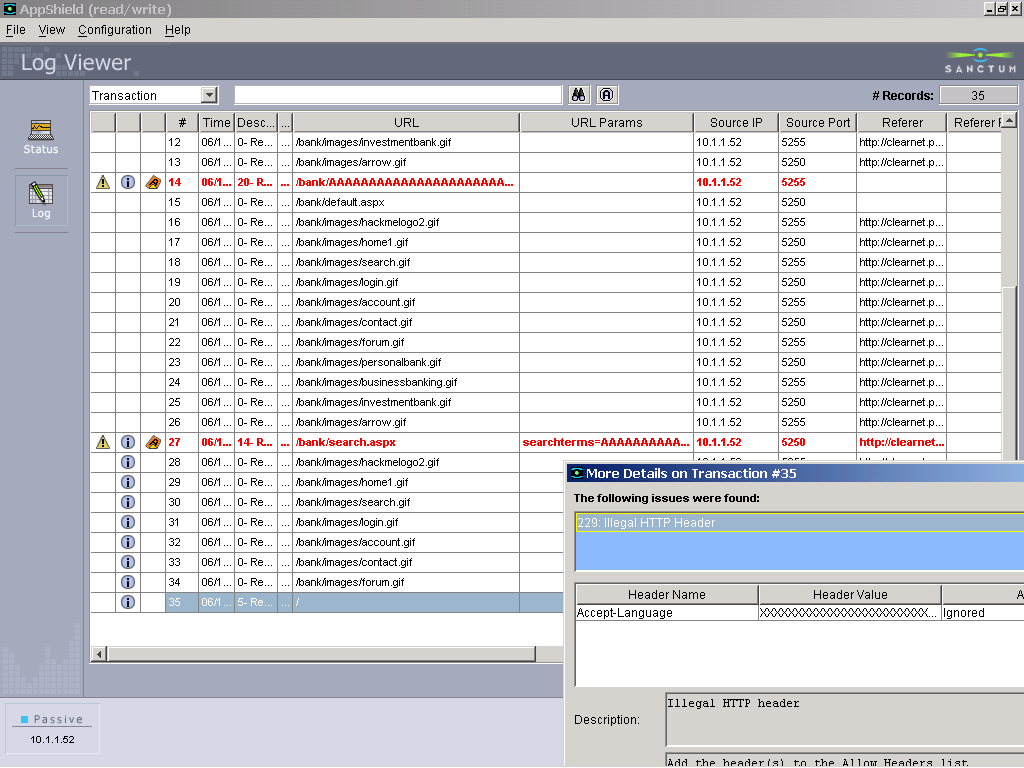

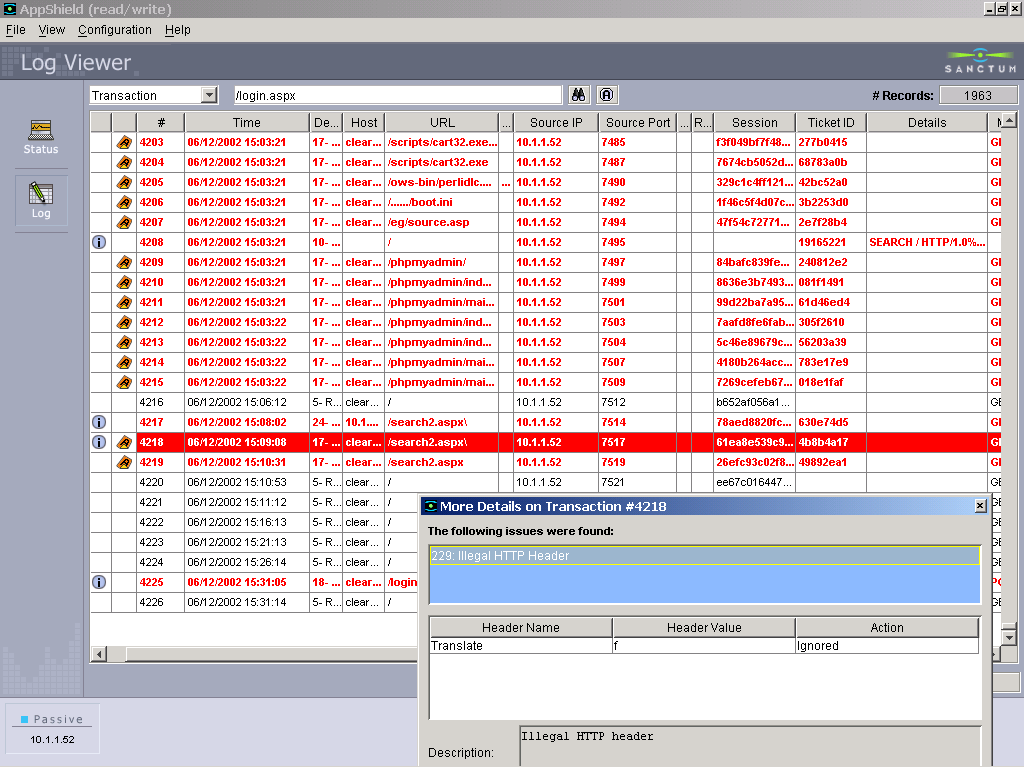

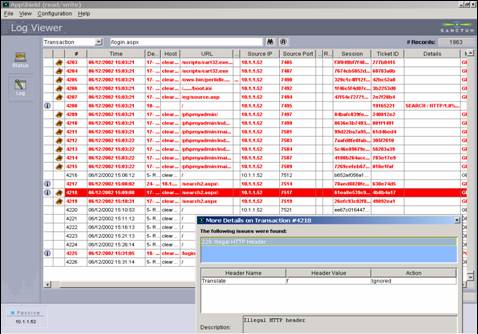

36	HTTP Headers – Log Example
37	Attack Detection - Path Target of attacks: show source, directory browsing, escape virtual root (download files, execute scripts), buffer overflow, cross site scripting Log manifestation: Direct canonization problems - .. and . Tricks with \ (for Win32) URL encoding - %2e instead of “.”, %70 instead of “p” Double encoding - %252e instead of “.” UTF-8 overlong/invalid sequences Direct/indirect access to scripts/forbidden areas/files backup/old extensions Cross Site Scripting (<...>) Long values (overflow) etc etc etc
38	Attack Detection - Parameters Target of attack: eShoplifting, access files/sources, remote command execution, database manipulation, session hijacking, cross site scripting, etc. GET vs. POST Log manifestation: eShoplifting – hard, locate the nonstandard price access files/sources – strange/encoded characters in file name values remote command execution – pipe (\|) and other hazardous characters/patterns (e.g. <!-- ...), DoS/Unix shell commands. database manipulation – data contains ‘ or “ with SQL fragments session hijacking – multiple attempts to change value of session token Cross Site Scripting – HTML tags such as <script>... and <img src=...>

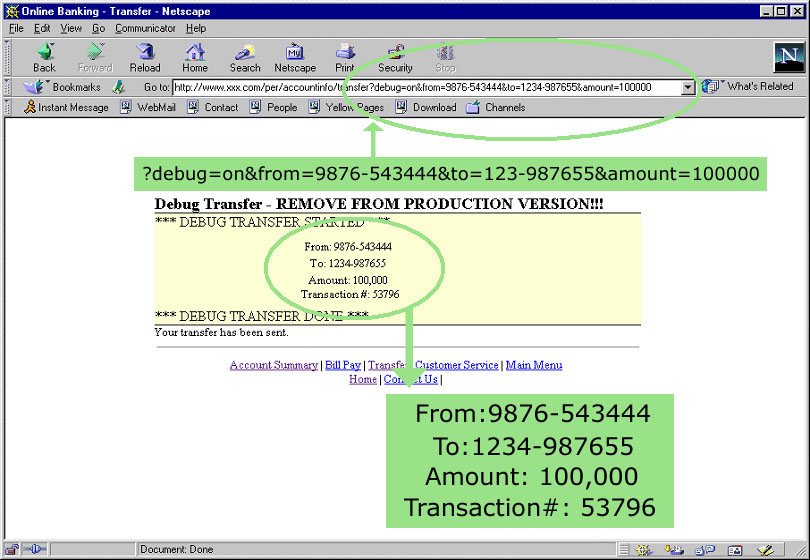

39	Common Web Vulnerabilities Attack target: all of the above Based on infrastructure – not the application Targets demo scripts/applications and known vulnerabilities Log manifestation: Requests for non-application-specific scripts/paths Involves path tricks or HTTP header manipulation

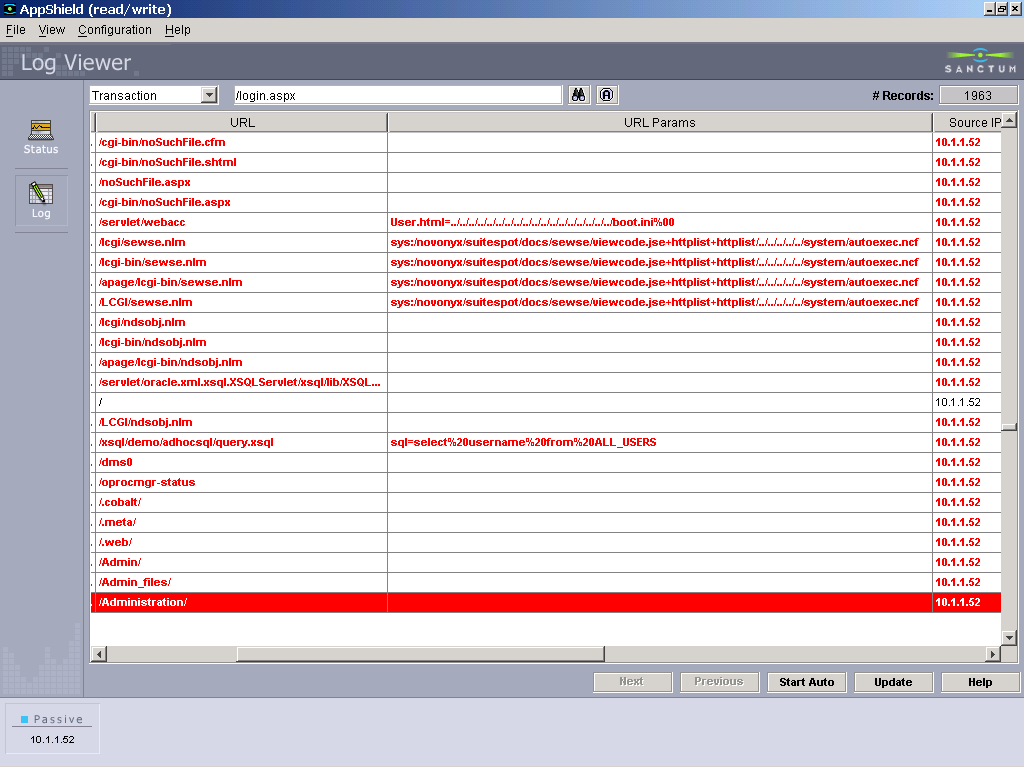

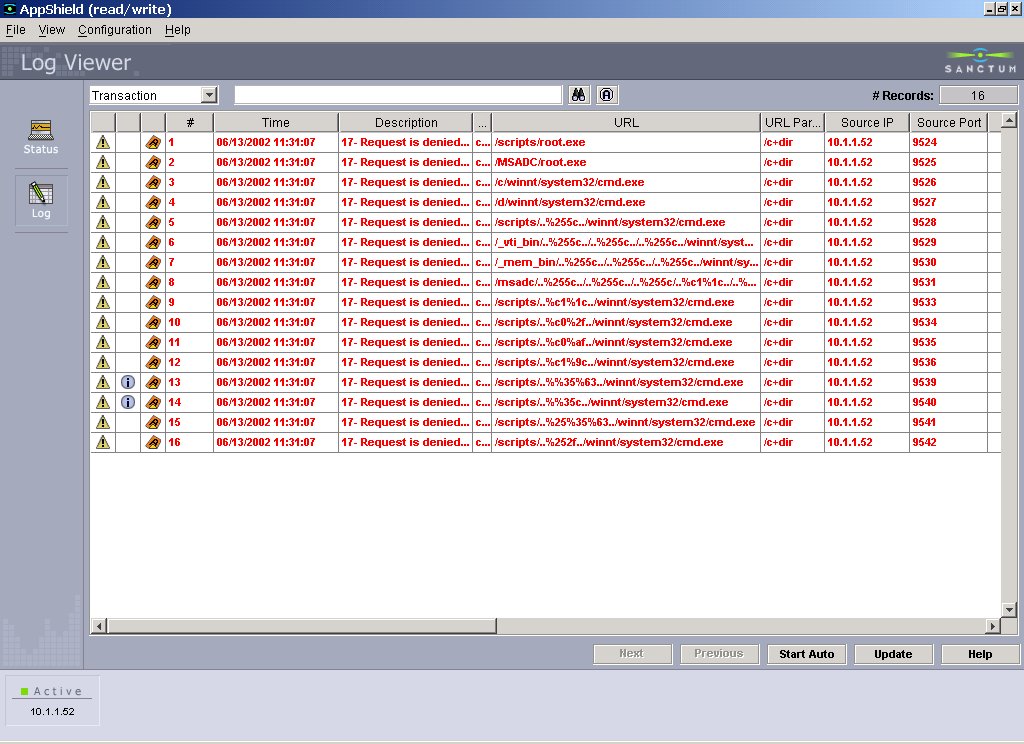

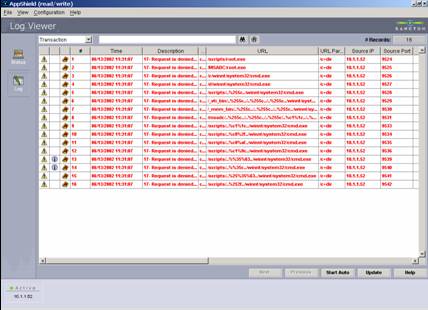

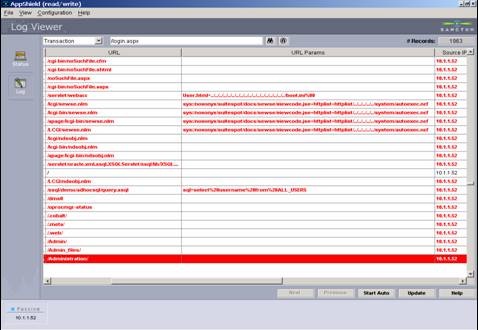

40	Common Web Vulnerabilities – Log Example
41	Typical Web Application Attacks

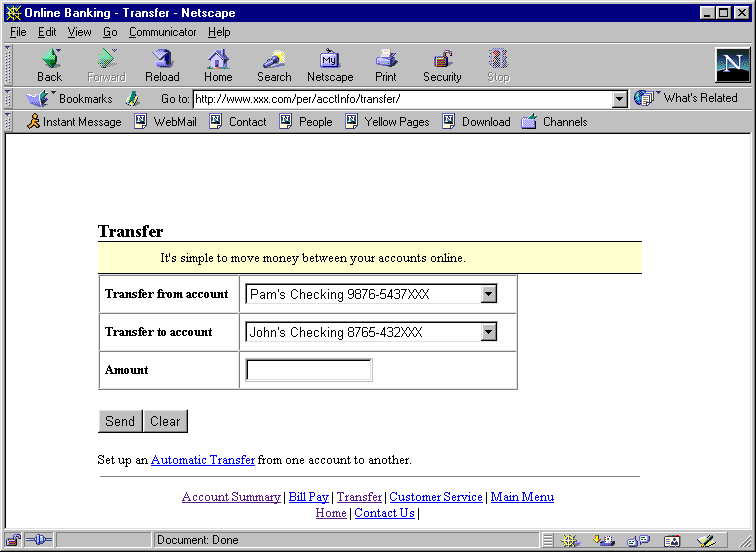

42	Hidden Field Manipulation : eShoplifting Change price in eCommerce site Hidden price parameter can be changed Hard to detect in logs –compare price to original, use HTTP referer Variations: not limited to eShoplifting Changing hidden values can undermine application Example: SQL injections, CSS, remote command execution, overflow/DoS, session hijacking, file read/write

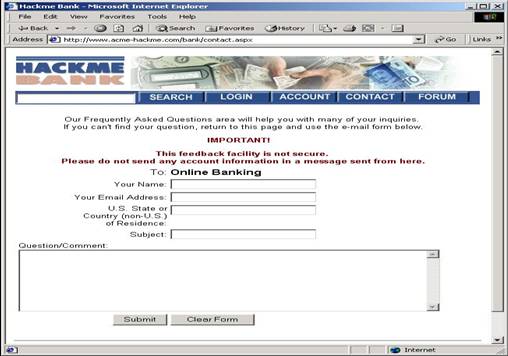

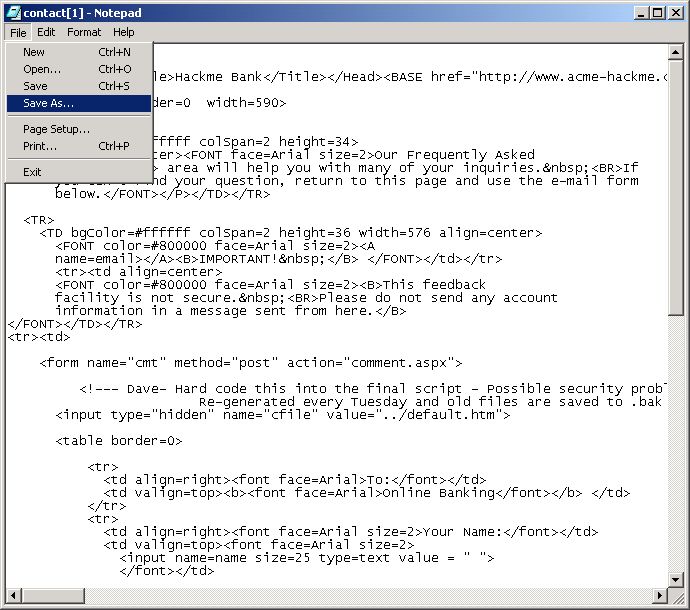

43	Hidden Field Manipulation: File Access Target: write to/read from file on web server How: change hidden file name in parameter value Log manifestation: all tricks for “..”, null byte, absolute path, missing Referer Variations: file=/etc/passwd file=../../../../../../etc/passwd file=../../../../../../etc/passwd%00.tmplt file=%c0%ae.\boot.ini file=/etc/passwd(00).tmplt ... (we’ll see more in advanced topics) False alarms: not likely (unless application uses .. itself) Examples: File download (file read) – next 2 slides Defacement using hidden file parameter (file write)

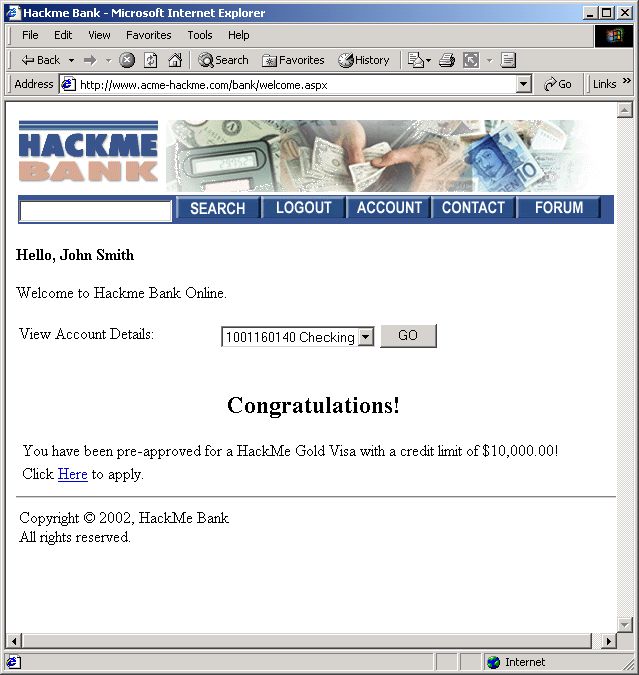

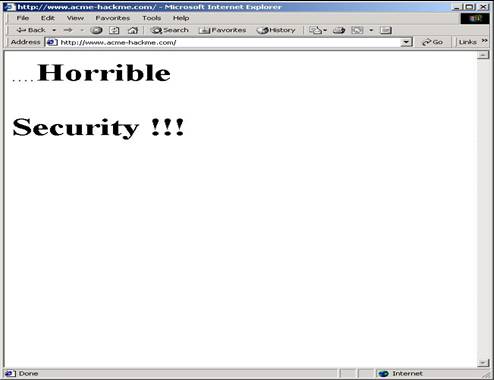

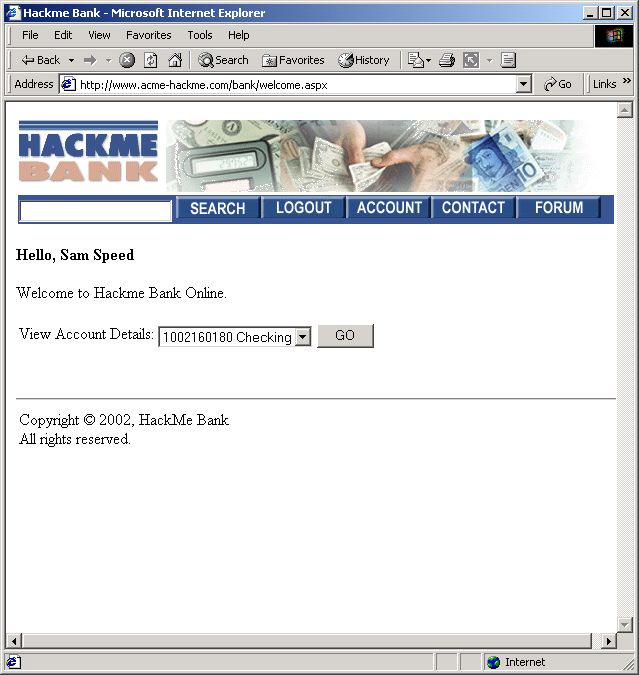

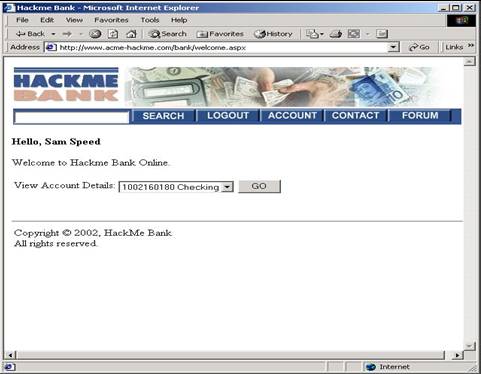

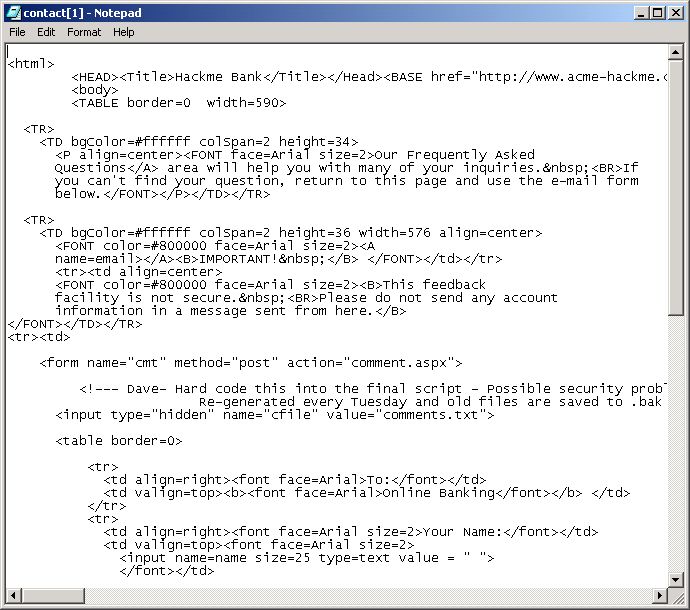

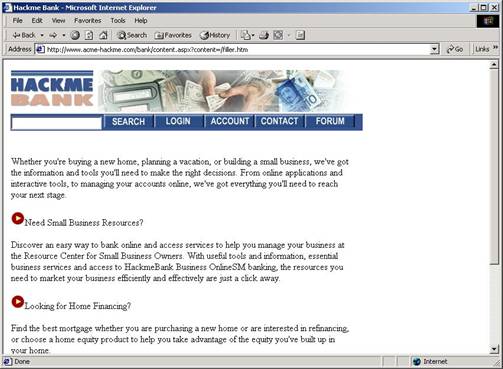

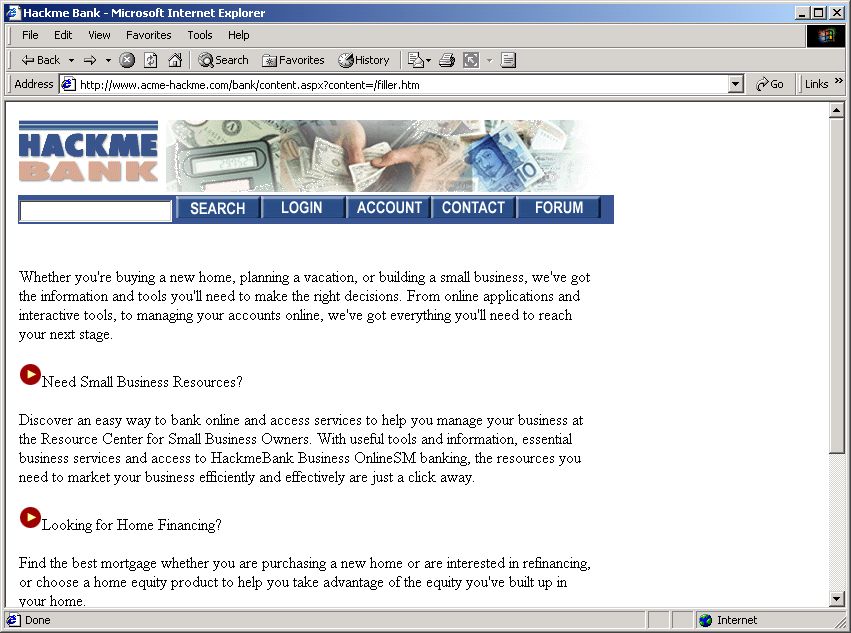

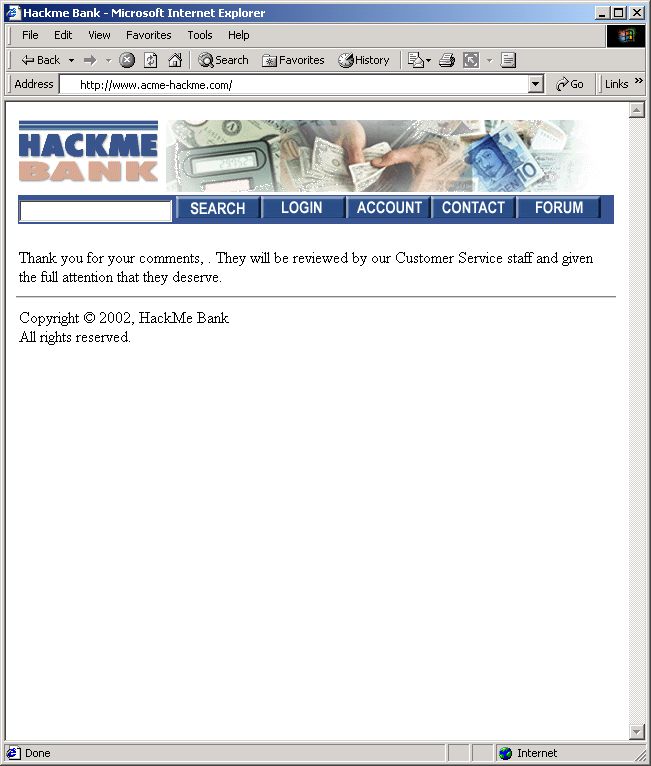

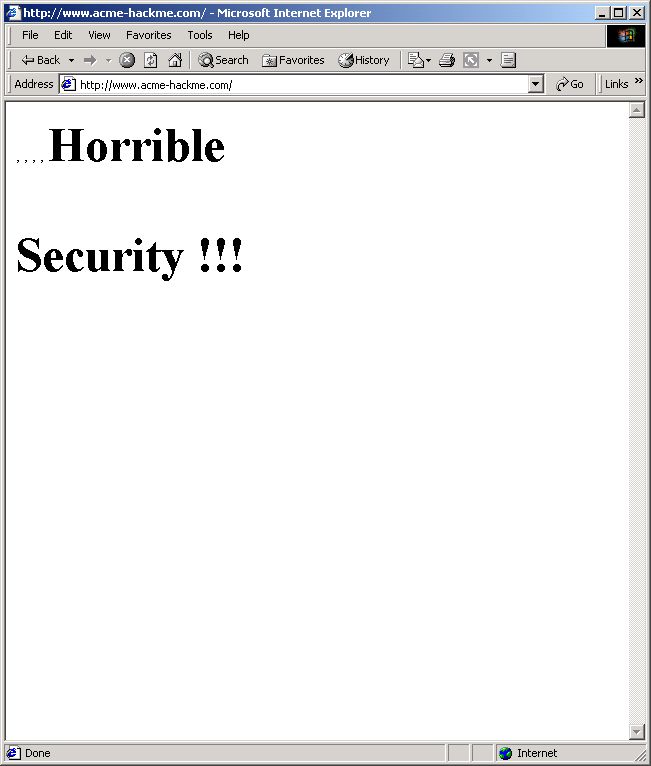

44	Defacement + Hidden Field 1
45	Defacement + Hidden Field 2
46	Defacement + Hidden Field 3
47	Defacement + Hidden Field 4
48	Defacement + Hidden Field 5
49	Defacement + Hidden Field 6
50	Defacement + Hidden Field 7

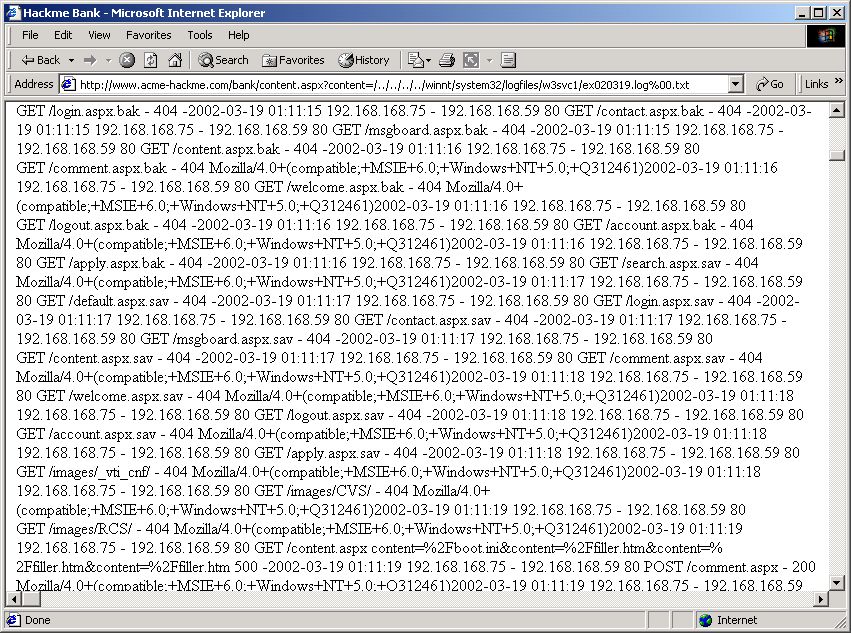

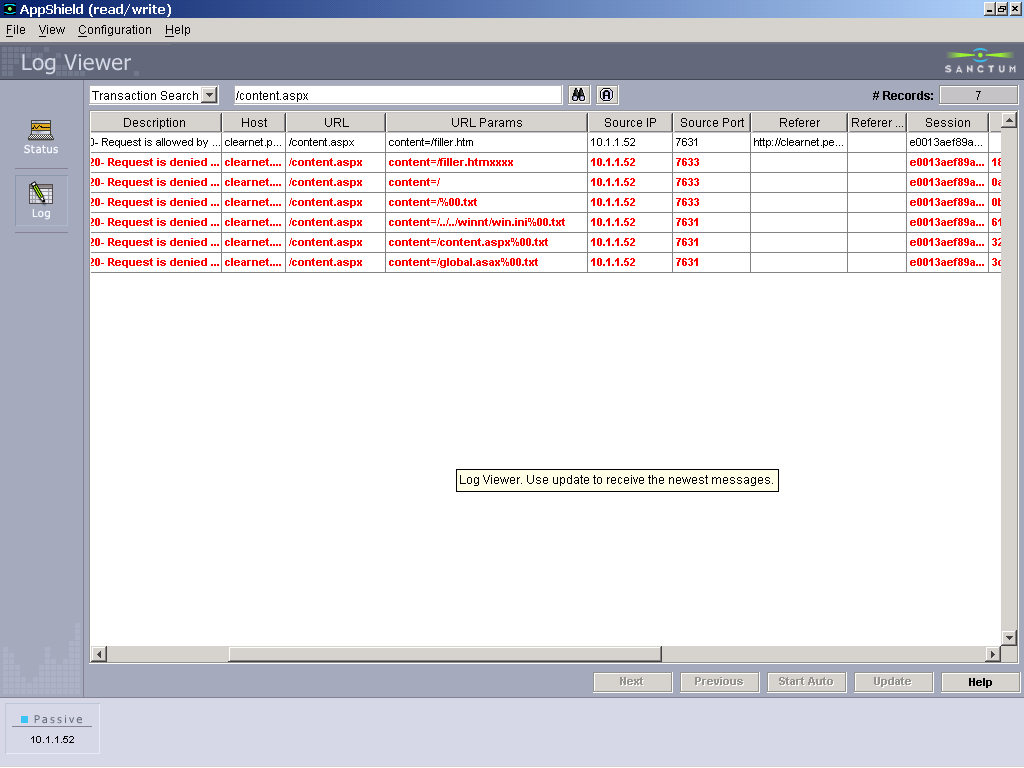

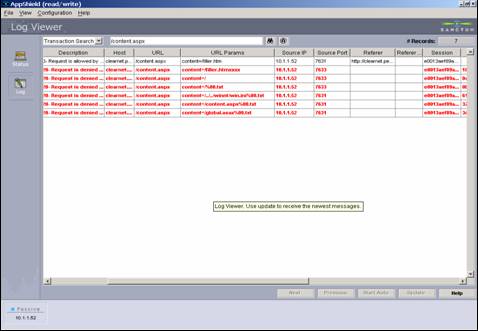

51	File Access - Logs

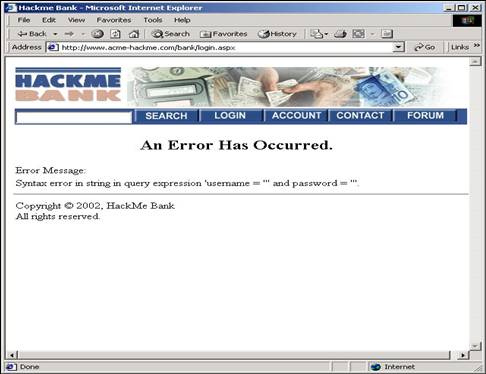

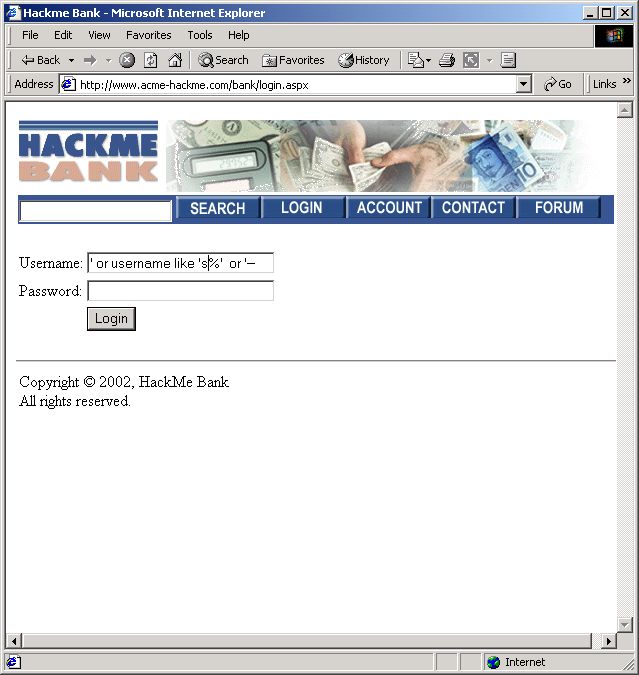

52	Parameter Tampering Target: SQL injection – database manipulation How: Modifying semantics of underlying SQL query Log manifestation – parameter value containing ‘ (or “) followed by SQL query fragments: ‘ or 1=1 or ‘ foobar ‘ or username like ‘%s’ – ‘ – (CR) select * from tab ‘ ; delete users ; Testing and understanding causes a lot of (syntax) errors – watch for “500” responses and database errors. ‘ (testing application response) Variants: innumerable False alarms: sometimes a ‘ is just a ‘ (isn’t it?)

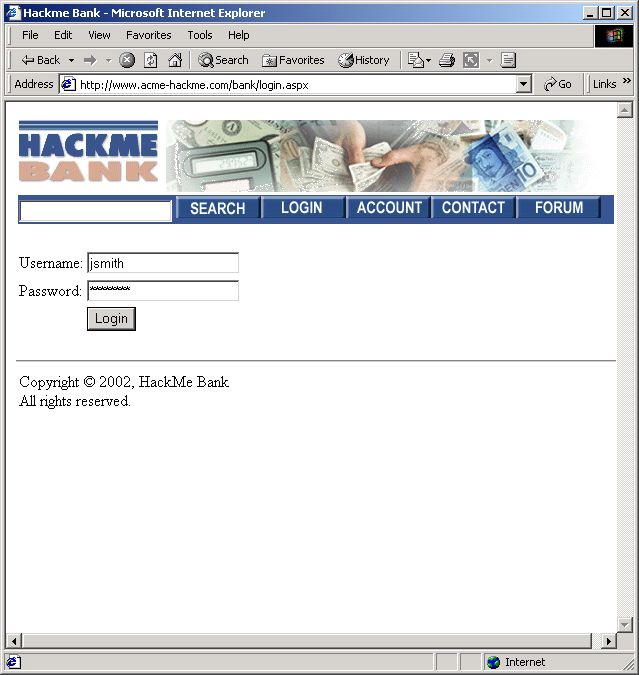

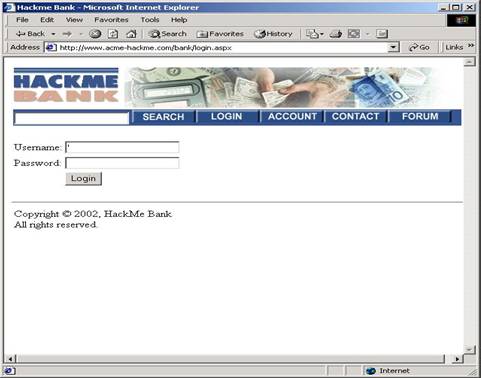

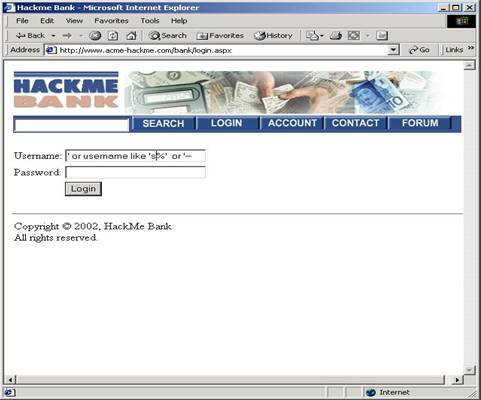

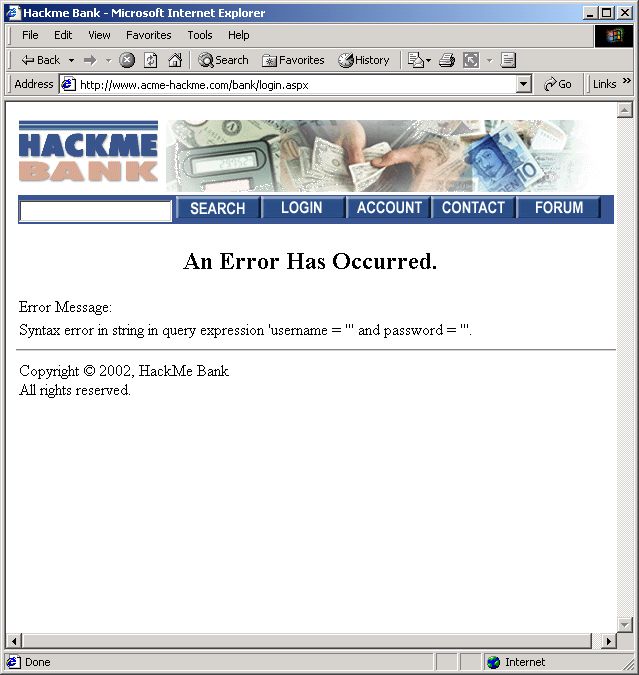

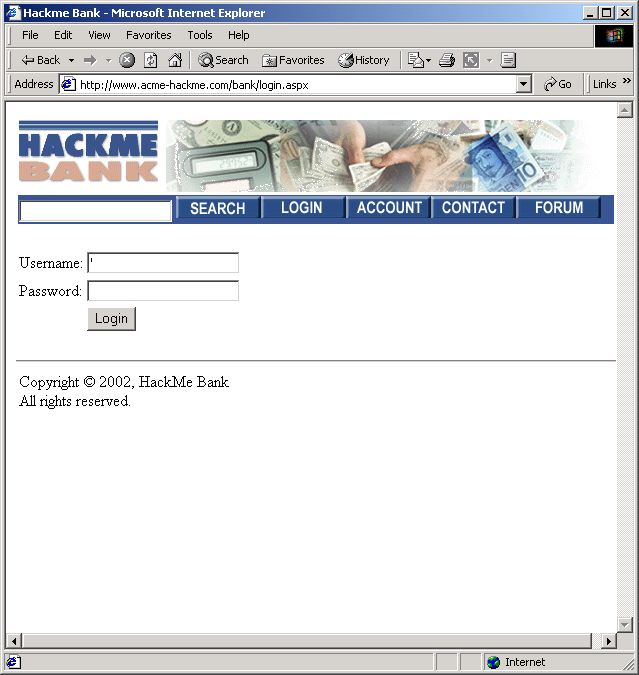

53	SQL Injection 1
54	SQL Injection 2
55	SQL Injection 3
56	SQL Injection 4
57	SQL Injection 5
58	SQL Injection 6

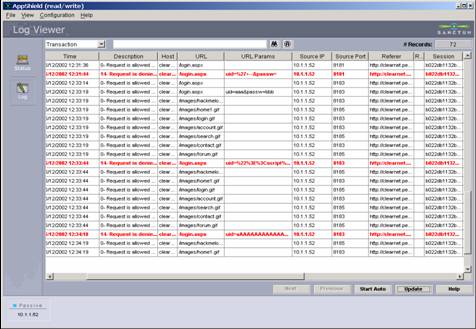

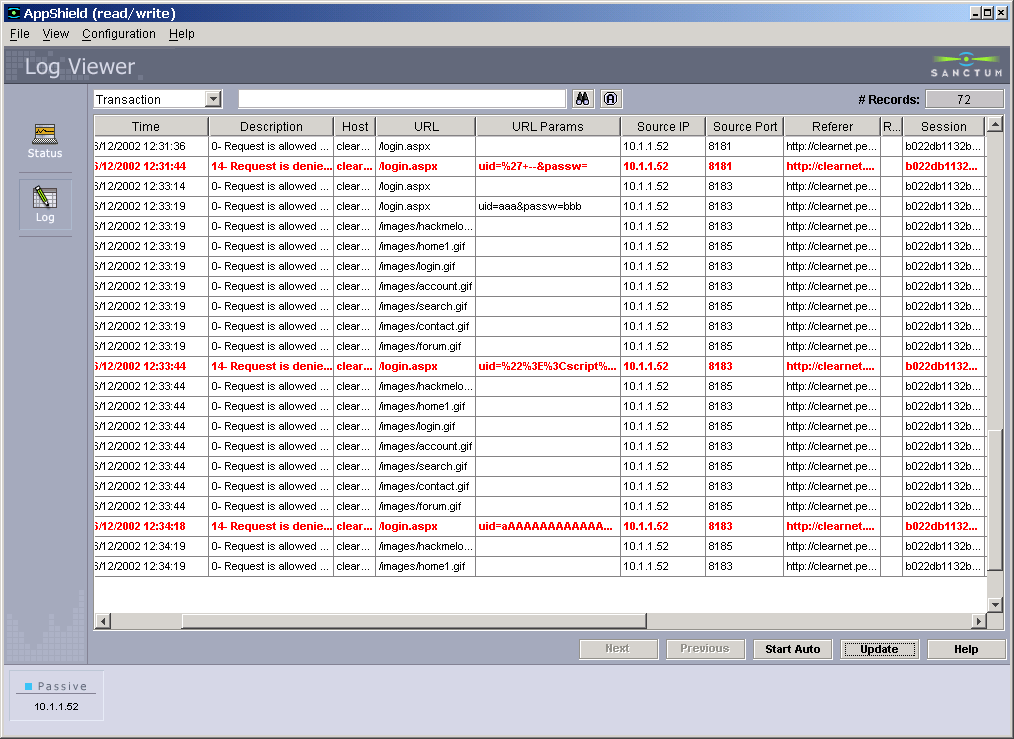

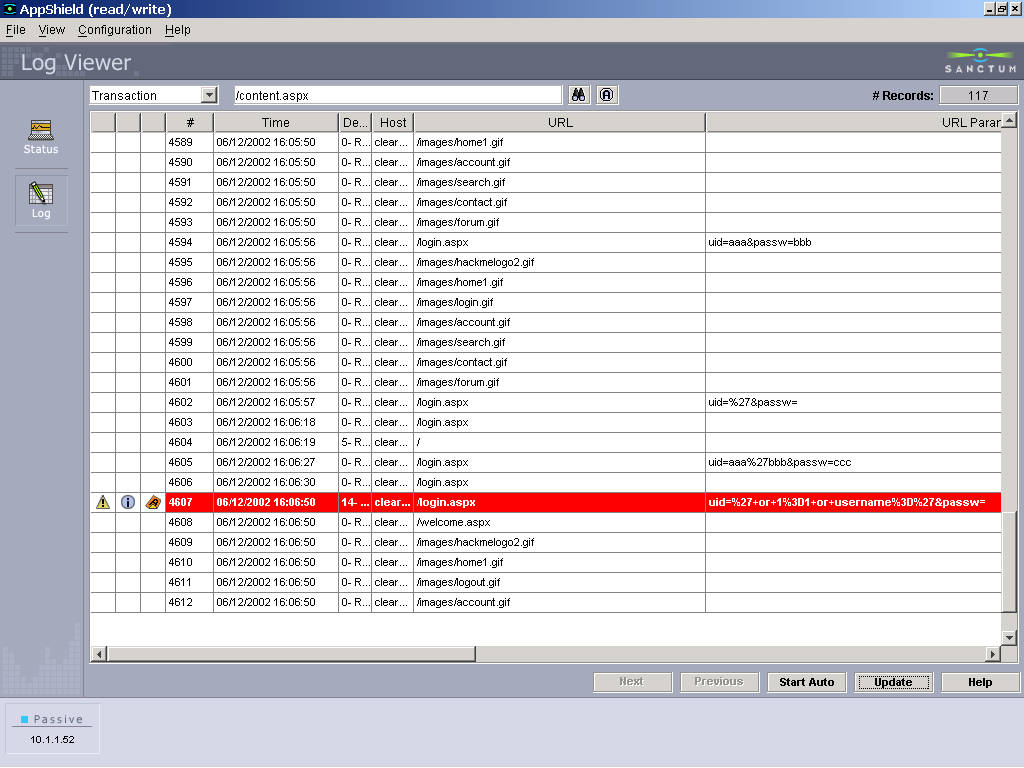

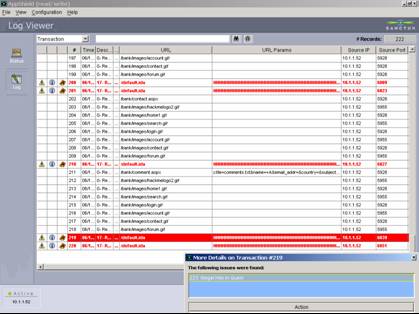

59	Parameter Tampering – SQL Example

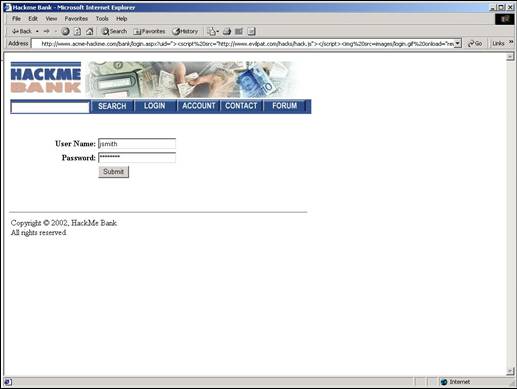

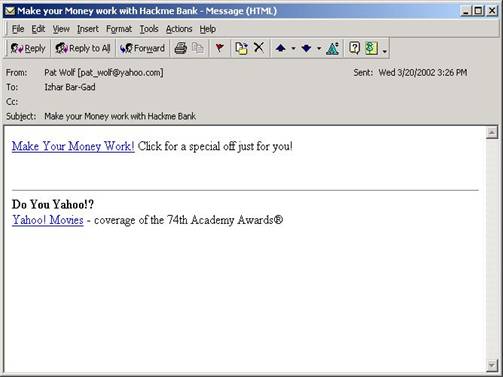

60	Cross Site Scripting (CSS, XSS) Target: steal client cookies, impersonate/session hijacking, loss of privacy How: Usually in parameter values, sometimes in path, and even in Referer Log manifestation: HTML tags in path/parameter value/Referer Variations: <script>...</script> <TAG ... javascript:...> (TAG=IMG, DIV, ...) <TAG ... &#nnn ... &#xHH ...> “> (or ‘>) followed by above “ style=background:url(javascript:...) “ onerror=... etc. etc. etc. False alarms: not likely
61	Cross Site Scripting Explained

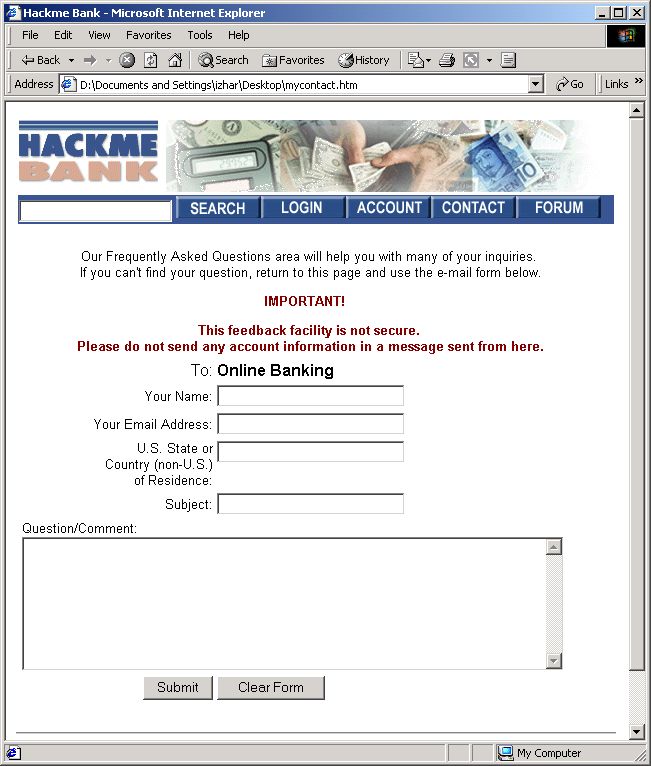

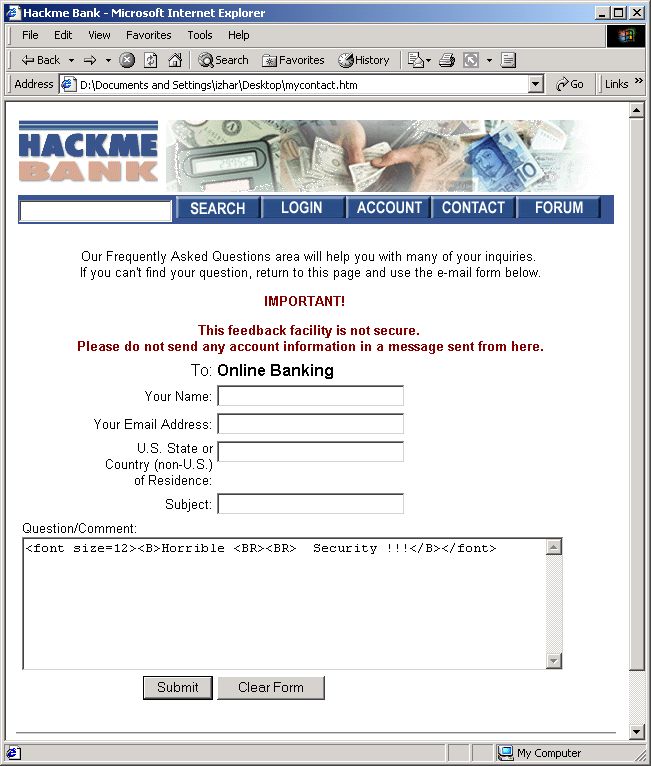

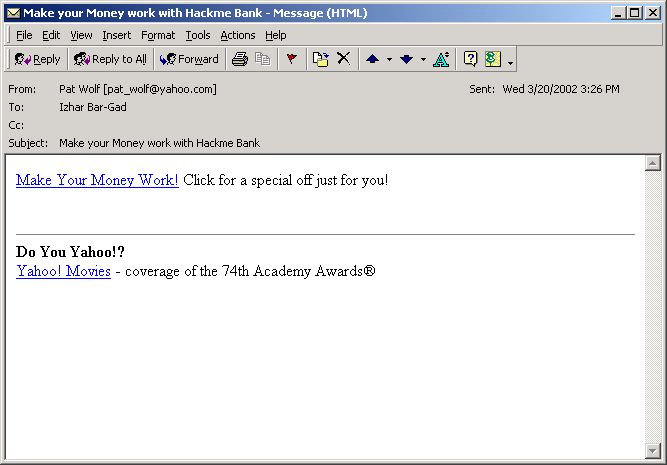

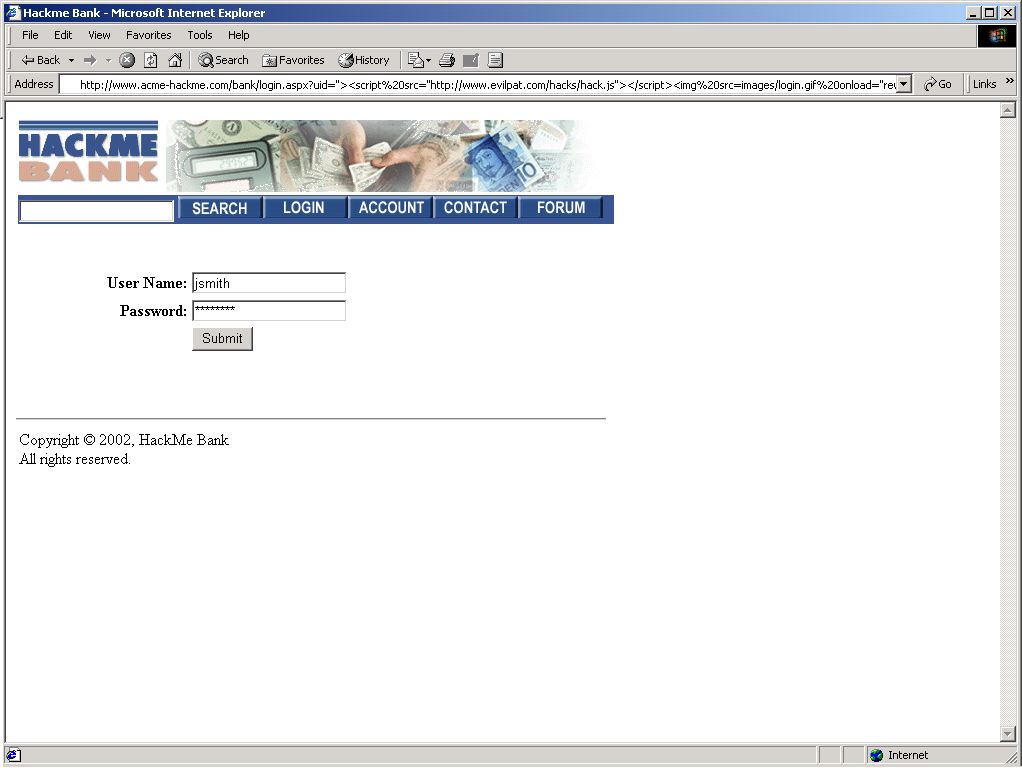

62	Cross Site Scripting 1

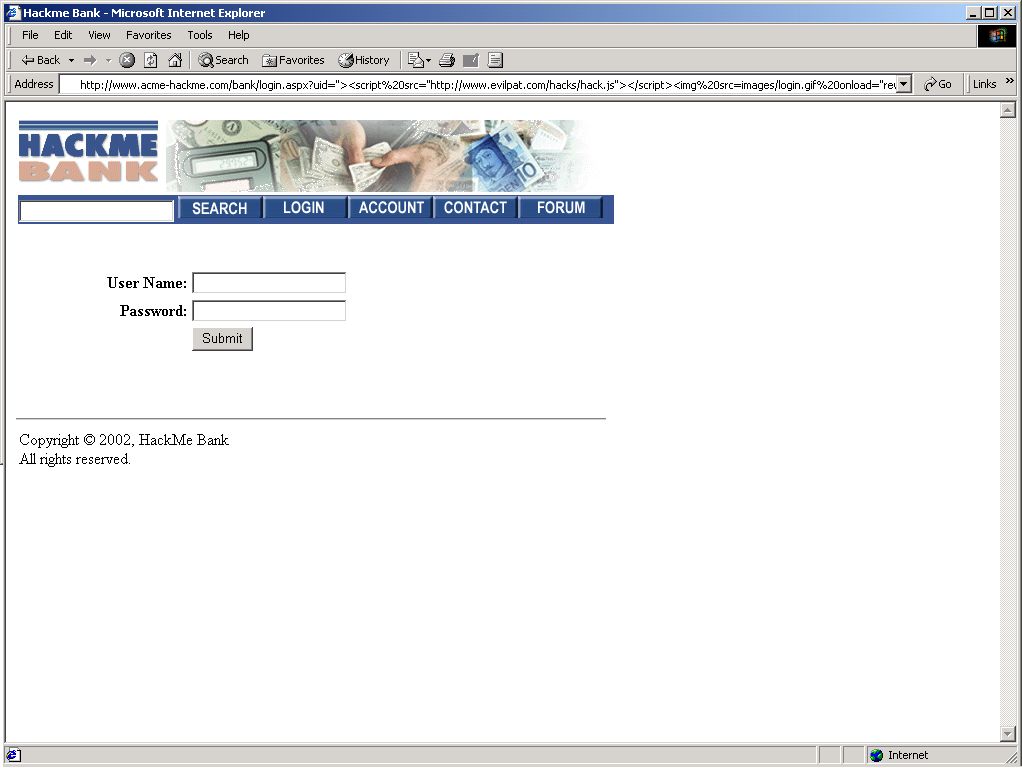

63	Cross Site Scripting 2
64	Cross Site Scripting 3

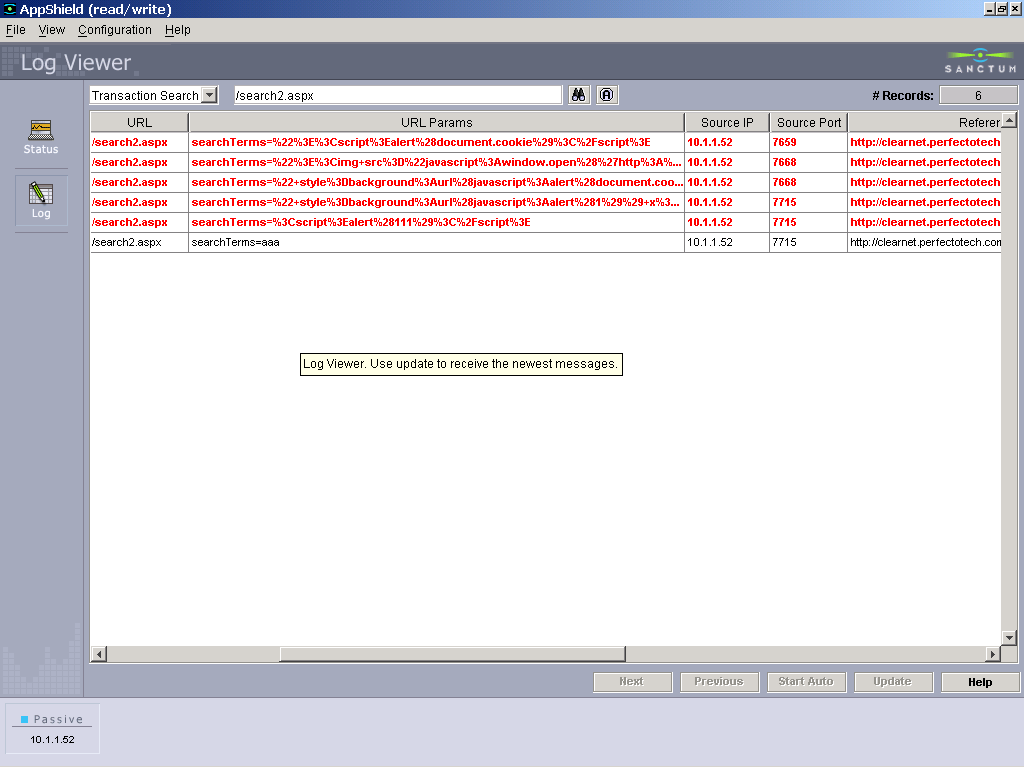

65	CSS Example
66	Well Known Common Web Vulnerabilities Target: all of the above How: exploit web server/application server vulnerability, regardless of specific application deployed Log manifestation (path): non application paths (or path fragments) – e.g. /bin/, winnt, system32, _vti_bin, _prvivate, shtml.exe non application files (especially executables) - e.g. cmd.exe, perl.exe, sh, application.cfm, global.asa, nph-test-cgi, test-cgi, showcode.asp weird (and uncommon) extensions – idq, ida, htw Encoding tricks False alarms: unlikely
67	Script Source Disclosure Target: obtain source script (access to application logic, and goodies) How: exploit web/app server vulnerabilities in path, to reveal application (specific) script Log Manifestation: Request for “similar” but not identical resource to script in site – not THE script False Alarm: not likely
68	Advanced Topics – HTTP Headers Proxy servers can forward the client IP (in HTTP headers) Typical headers: Client-IP X-Forwarded-For customizable

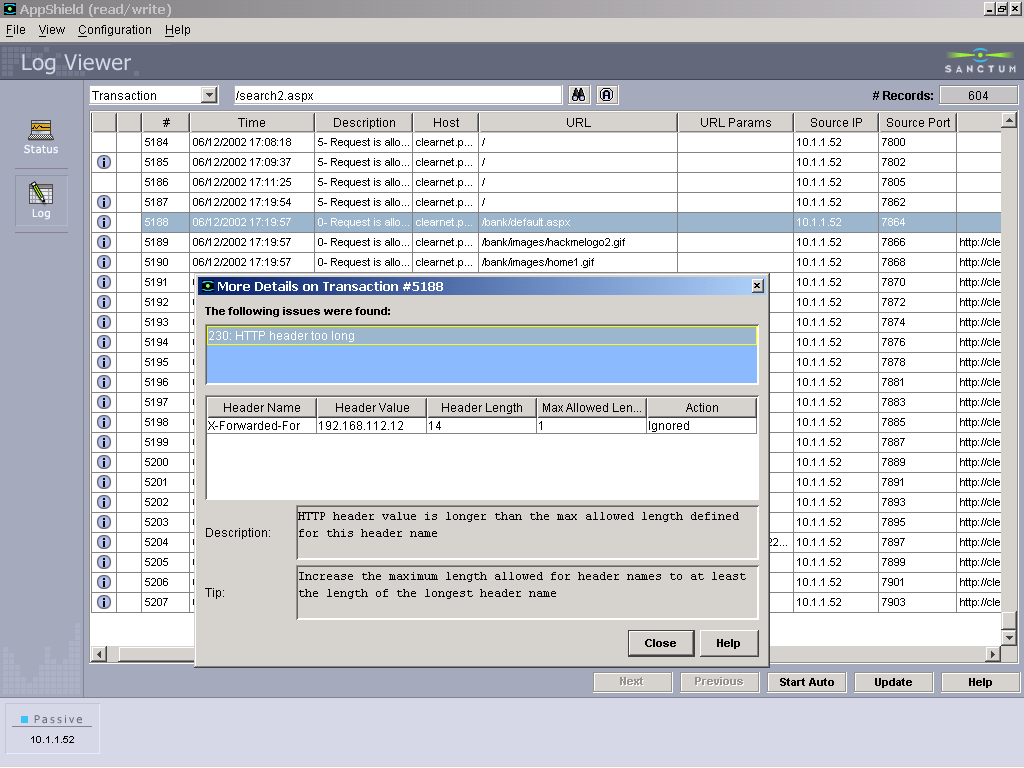

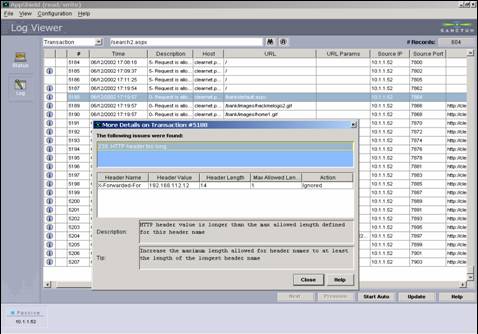

69	HTTP Headers to Your Aid
70	Advanced Topics – Anti-IDS Techniques Not just anti-IDS – also anti-proxy, anti-app-firewall, etc. Using HTTP ‘HEAD’ method instead of ‘GET’ URL Encoding the attack Using double slashes (//cgi-bin//script) – old technique Reverse traversing attacks /cgi-bin/blabla/../script.pl Self reference directories: /cgi-bin/./././script.pl Premature request ending : GET Premature request ending : GET /%20HTTP/1.0%0d%0aHeader:%20/../../cgi-bin/some.cgi HTTP/1.0\r\n\r\n Hiding as parameters (encoding the ‘?’)

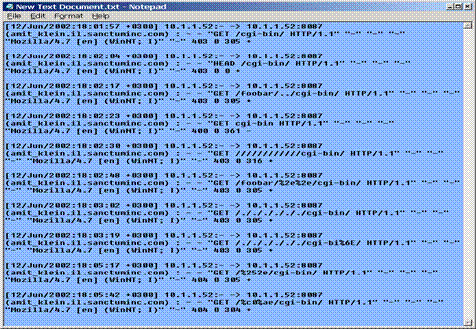

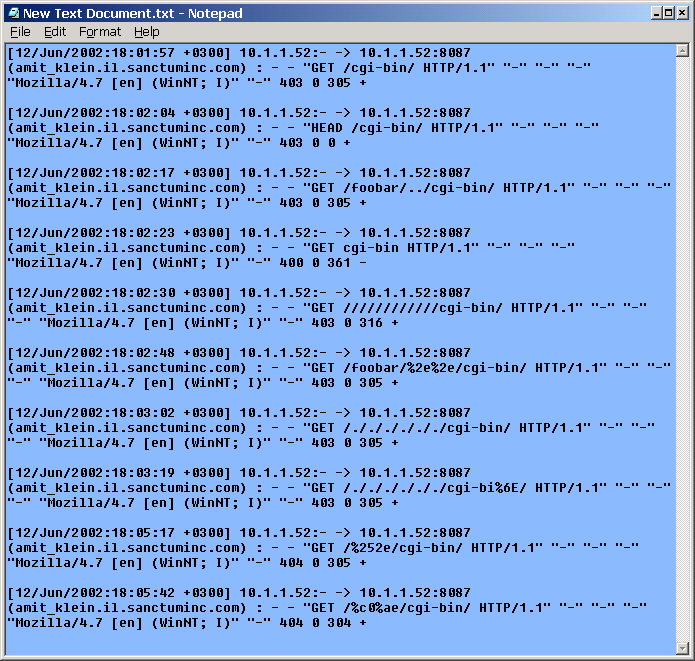

71	Example: Anti-IDS Attack URL Forceful Browsing attempts on “samples/admin” Variations on a theme: Absolute Pathing: “samples/admin” Delimiter Padding: “samples///admin” Relative Pathing: “samples/./admin“ URL Encoding: "%2fsamples/admin“ Path Traversal: “samples/fakedir/../admin“ DOS Syntax: “samples\admin” tripe dots “samples/fakedir/.../admin” Null Method: "GET%00/samples/admin“
72	Anti-IDS techniques
73	Advanced Topics – Character Encoding What is a dot? Double dot sequences are recognized and rejected (by web server, IDS, application). A dot is a dot, e.g. /app/../admin/shutdown URL encoded, it is /app/%2e%2e/admin/shutdown IIS extension: /app/%u002e%u002e/admin/shutdown Double encoded: /app/%252e%252e/admin/shutdown UTF-8 overlong (2 bytes), un-URL-encoded: /app/(C0)(AE)(C0)(AE)/admin/shutdown UTF-8 overlong (2bytes), URL-encoded: /app/%c0%ae%c0%ae/admin/shutdown

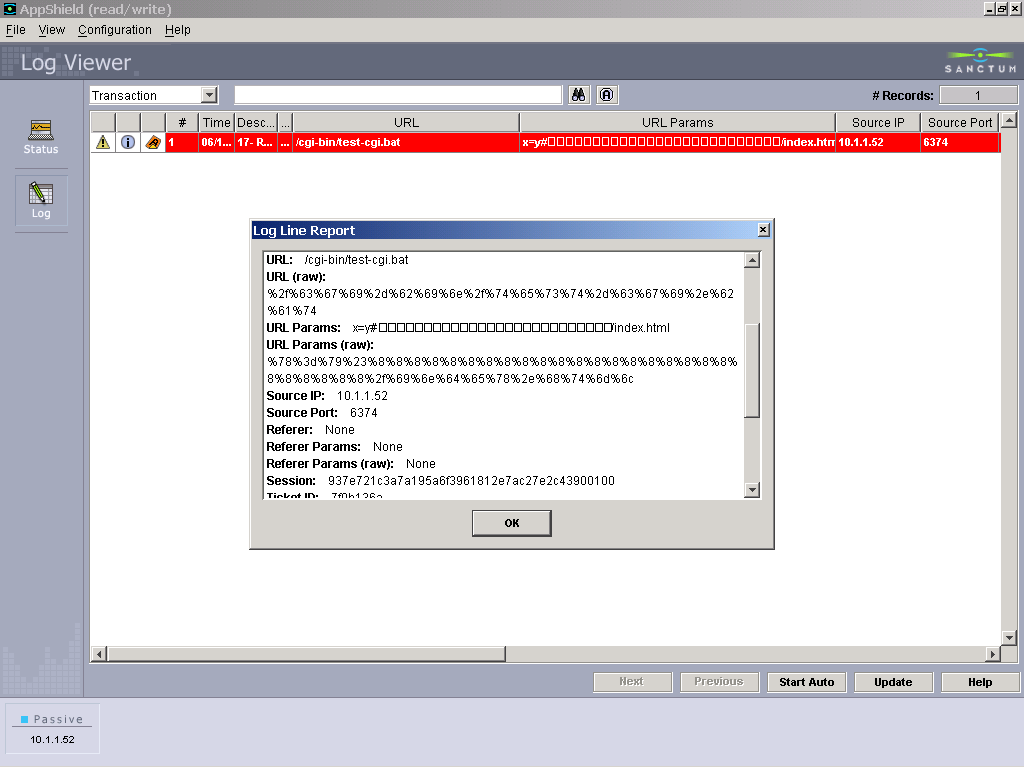

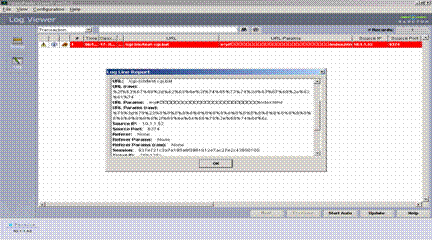

74	Advanced Topics – Log Spoofing Carefully crafted messages can fool the human eye May be used to frame the innocent, or to hide the nature of the attack Uses CR, LF, BS characters Example: hiding the true nature of the request in Apache log: /cgi-bin/test-cgi.bat?x=y# (BS) ... (BS) /index.html
75	Log Manifestation
76
77	Tips for Session Analysis Reducing false positives by knowing the application flow HTTP Referer (flow) Hacker “style” Correlate with other sessions and other attack vectors
78	Forensics in the Real World: Code Red II You notice that your Web pages are defaced or an increase in network load on servers Monitor your network Notice infected machines scanning for new machines. Keep NW logs! Follow source IP addresses of scanners Resolve IP to names and locations - they all seem to be Web servers Monitor your Web servers and logs Unrecognized processes, very high thread count Many suspicious requests to index server – looks like Code Red or Code Red II Find what is infected or vulnerable Use worm scanners Take appropriate measures to stop the spread or repair infected hosts Clean infected machines, apply patches to the IIS

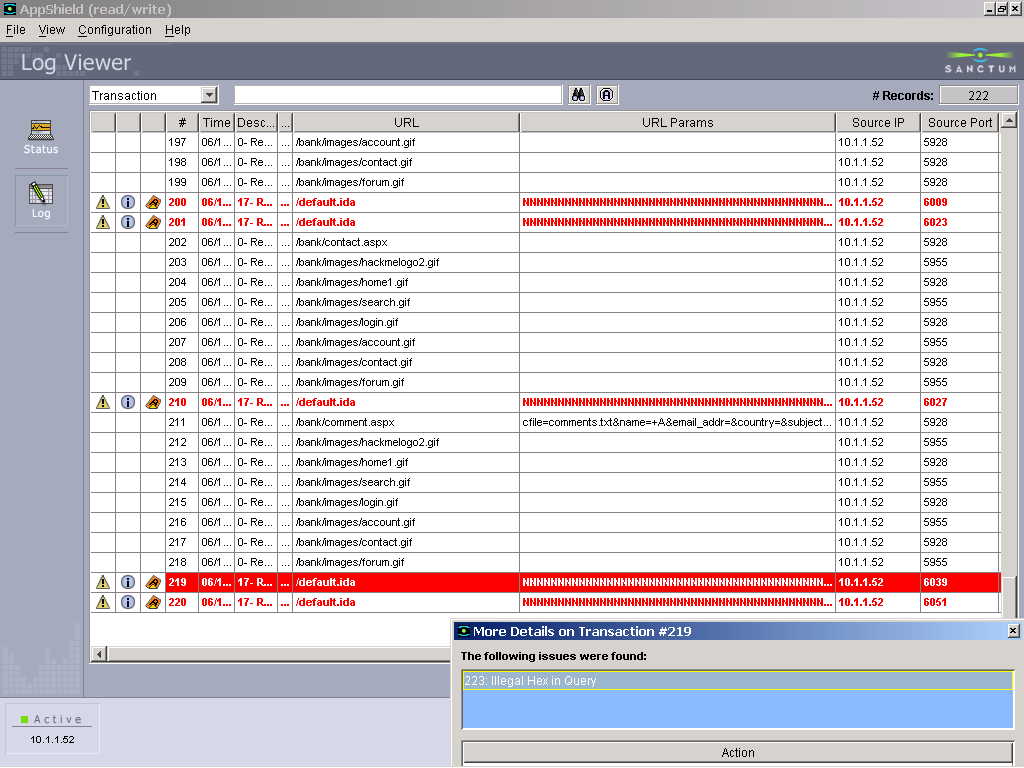

79	Logs Showing Code Red
80
81	SUMMARY: Information is Power! "Corporate criminals DON'T ALWAYS tell the truth. Their computers, however, usually do." -THOMAS TALLEUR, MANAGING DIRECTOR OF FORENSIC TECHNOLOGY SERVICES, KPMG
82	Where To Find More Information Where to find more material on forensics: SANS Information Security Reading Room, http://rr.sans.org/ PacketStorm, http://packetstormsecurity.org/ Rain Forest Puppy’s site, http://www.wiretrip.net/rfp/ Security Focus Library, http://online.securityfocus.com/library/ SecuriTeam, http://www. securiteam.com/ U.S. Deptartment of Justice CyberCrime page, http://www.usdoj.gov/criminal/cybercrime CGI Security’s “fingerprinting port 80” papers, http://www.cgisecurity.net/papers/
